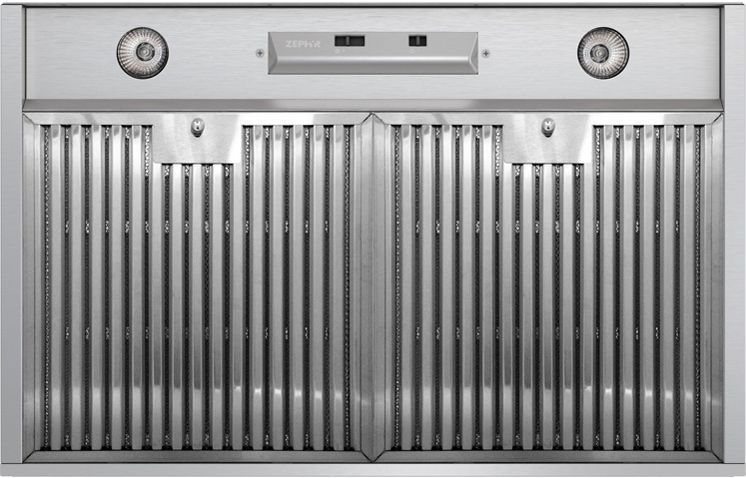

Zephyr Monsoon Mini 28.38" Stainless Steel Custom Hood Liner


Model #:

AK9128AS-BF-CL

Zephyr Monsoon Mini 28.38" Stainless Steel Custom Hood Liner-0
Zephyr Monsoon Mini 28.38" Stainless Steel Custom Hood Liner-1
Zephyr Monsoon Mini 28.38" Stainless Steel Custom Hood Liner-2

At a Glance

Good things come in small packages, and in this case it’s the Monsoon Mini one-piece liner. Includes dual-level halogen lights, 3-speed mechanical slide controls and the newly upgraded hybrid baffle filters. Equipped with a 300 CFM blower and the ability to duct either vertically or horizontally.Read More

$499.00

$1,199.00

Save $700.00

What We Offer

Get to know this product.

Product Overview

Product Overview

Good things come in small packages, and in this case it’s the Monsoon Mini one-piece liner. Includes dual-level halogen lights, 3-speed mechanical slide controls and the newly upgraded hybrid baffle filters. Equipped with a 300 CFM blower and the ability to duct either vertically or horizontally.

Dual-Level Lighting

Halogen Lighting

Aluminum Mesh Filters

Mechanical Slide Controls

Optional Recirculating Kit

Vertical or Horizontal Ducting

Useful Documents
Specifications

General Specs

ColorStainless Steel
Color-Finish NameStainless Steel
Range Hood TypeInsert
Maximum CFM300
Height (in.)6.13
Depth (in.)18.06
ENERGY STAR CertifiedNo
Manufacturer Warranty1 Year Labor / 3 Year Parts
Voltage120
Amp1.5
Frequency60

Overview

Size28-3/8” (30”)
Blower CFM (Min. - Max.)150 - 300
Sones (Min. - Max.)1.5 - 4
ControlsMechanical Slide
Speed Levels3
Lighting35W x 2
Dual-Level LightingYes
FiltersHybrid Baffle x 2
Recirculating OptionYes
Mounting Height Range26” - 36”

Duct Specifications

Vertical Internal Blower7” Round, 3-1/4” x 10”
Horizontal Internal Blower3-1/4” x 10”
